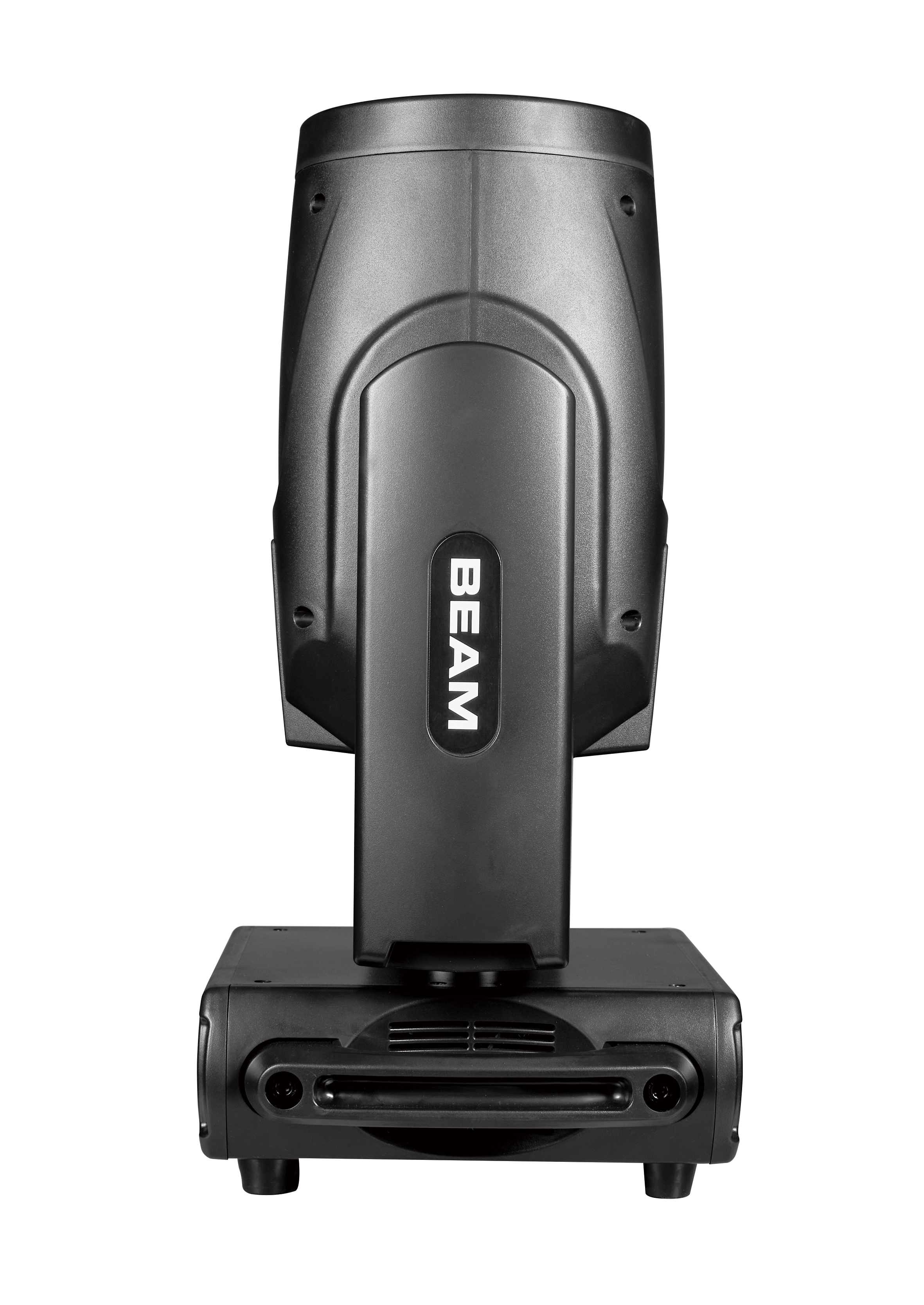

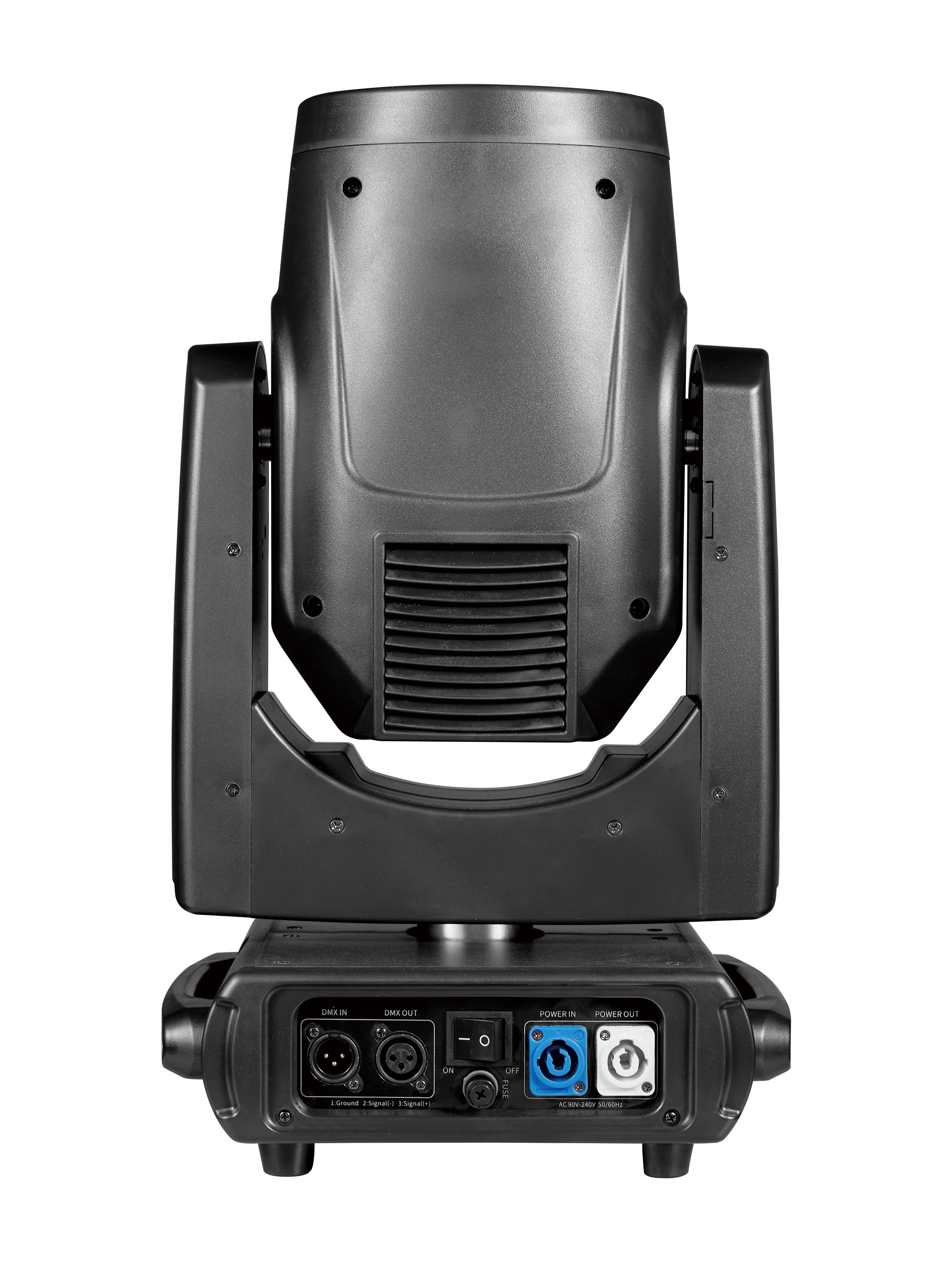

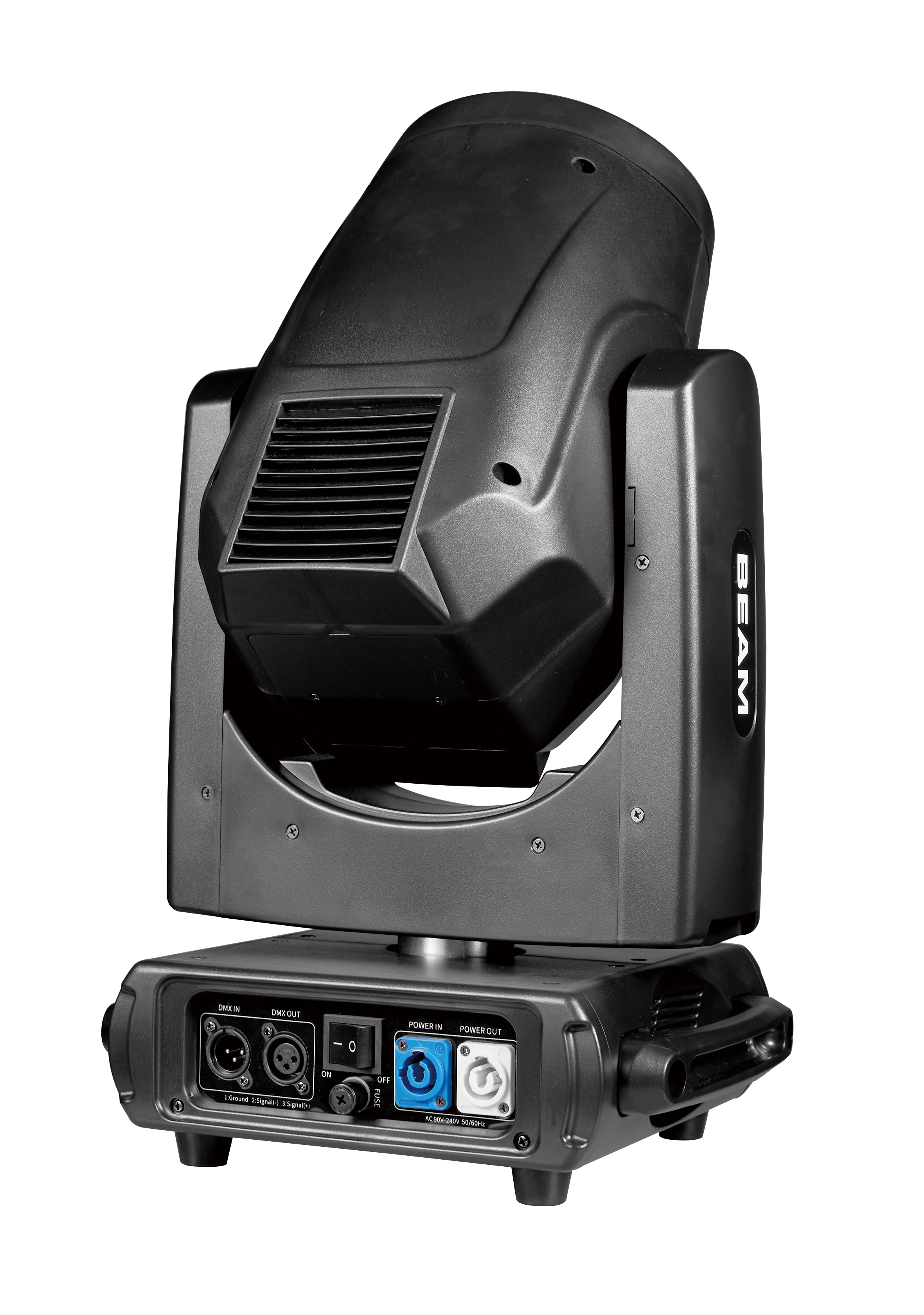

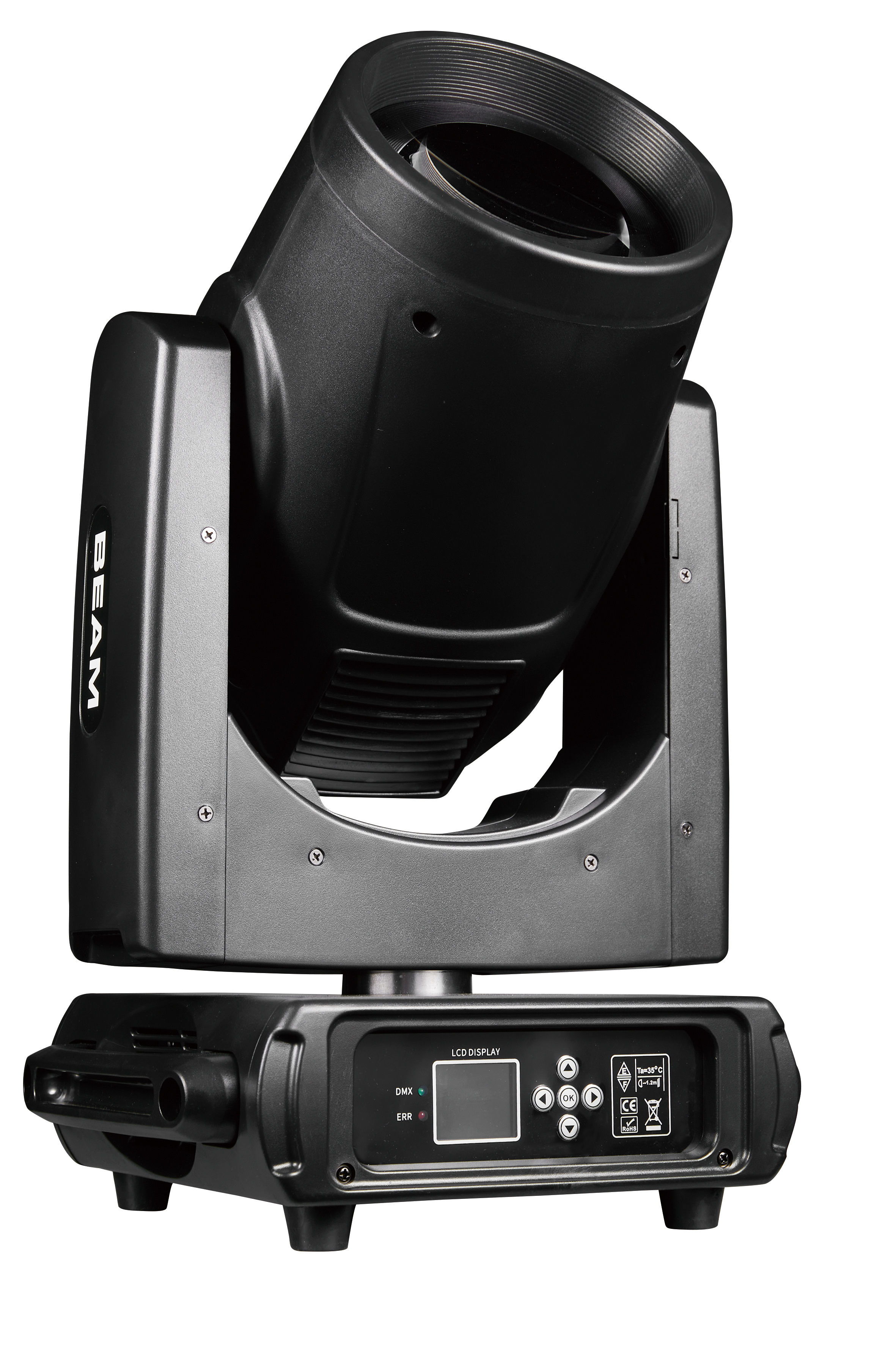

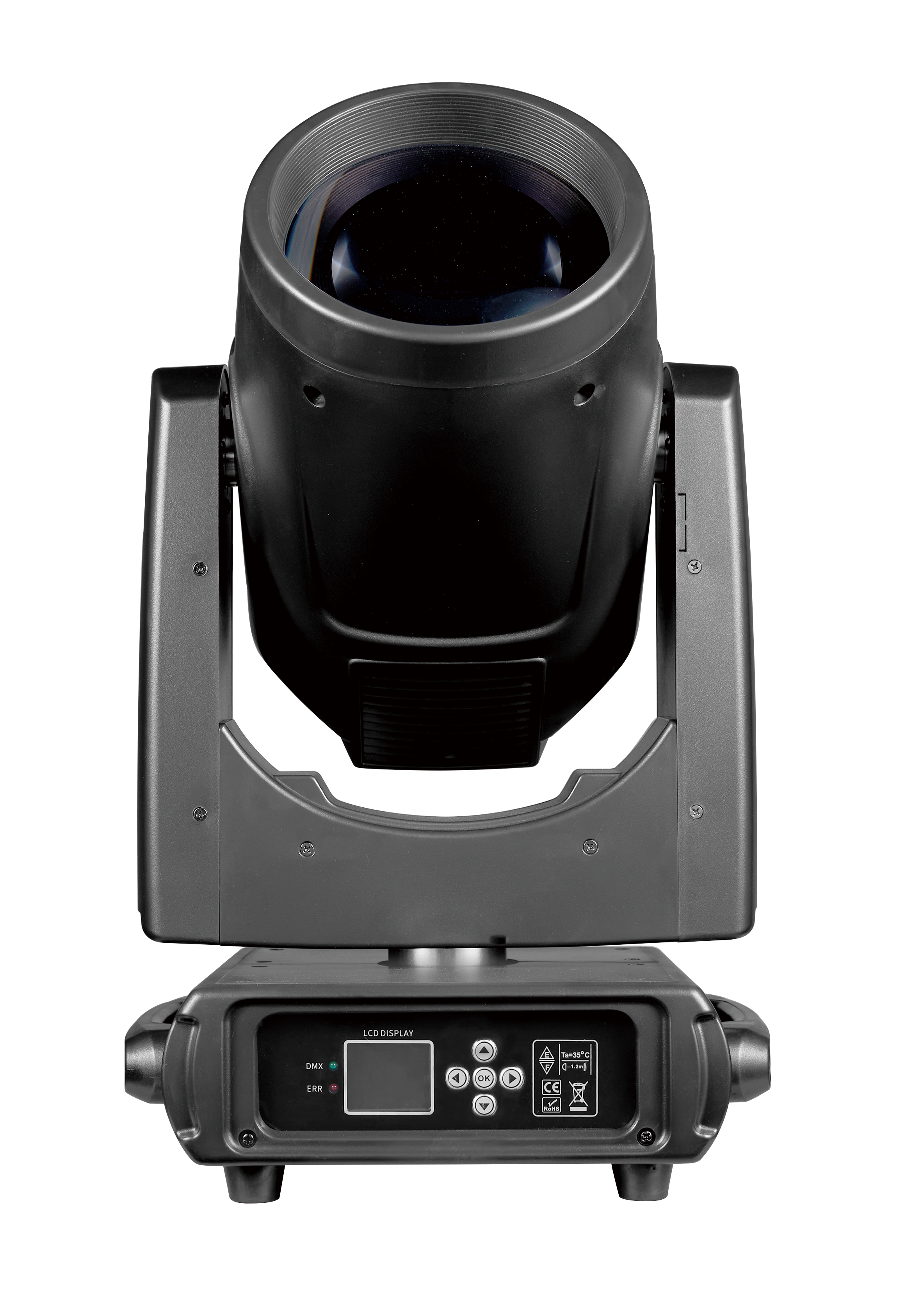

380W Moving Head Light
Voltage: AC 100-240V, 50/60Hz
Power Consumption: 600W
Light Source: OSRAM SIRIUS HRI 380
Ballast: Electronic Ballast
Channels: 16 control channels, dual operating modes, DMX512 receiver
Display: LED LCD display with Chinese/English interface
Optical System
Color Engine:
Color 1: 1 color wheel with 14 colors + white light (half-color & bidirectional flow)
Color 2: 1 rainbow color wheel
Pattern System:
1 fixed pattern wheel with 17 patterns + white light (jitter effect & bidirectional flow)
Prism Assembly:
8+16-facet prism + 24-facet prism (stackable)
Dynamic Effects:
Strobe: Mechanical dimming, 0.5-14Hz strobe (pulse/random modes)
Iris: Motorized iris (0-100% linear control)
Focus: Gradual soft focus effect, beam angle 5°-30°, linear zoom 0°-25°
Motion & Control
Movement Range:
Horizontal: 540°, 8/16-bit resolution
Vertical: 245°, 8/16-bit resolution
Reset Mechanism:
Photoelectric reset system with auto-unlock for accidental misalignment
Thermal Management:
Overheat protection with temperature-synced fan speed control
Smart Features:
Remote bulb control with automatic power reduction when shutter closed
Environmental Specifications
Protection Rating: IP20
