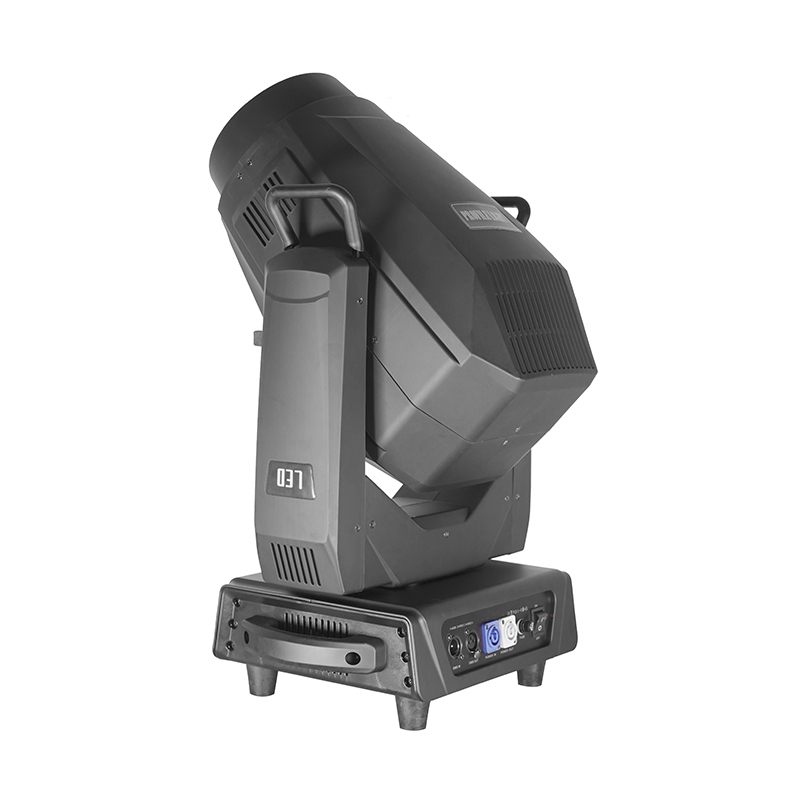

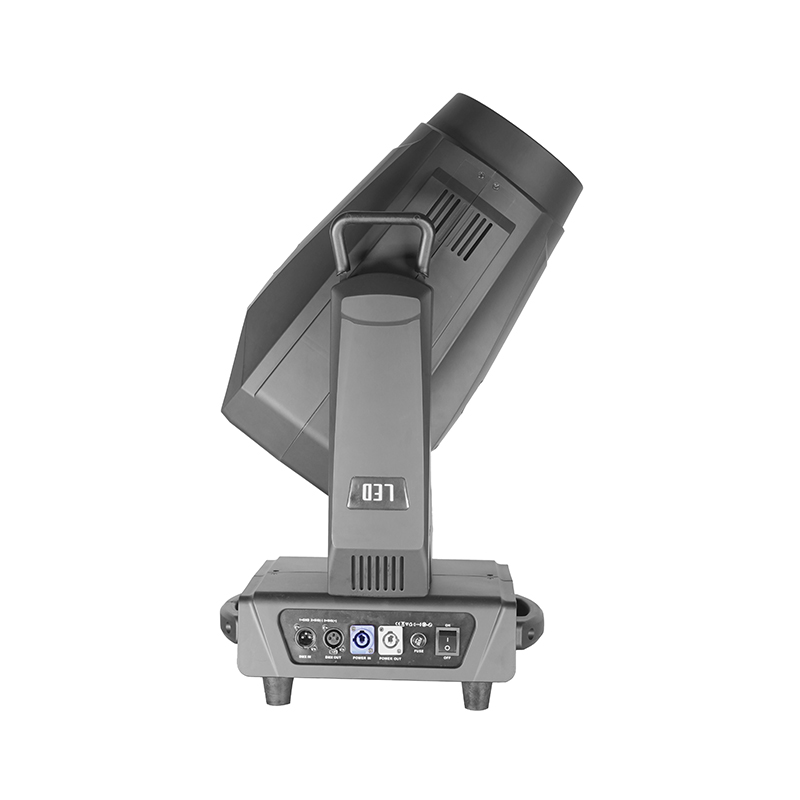

600W LED Moving Head Cutting Light
Product name: 600W LED Moving Head Cutting LightProduct model: MG-Q600
MORE
Operating voltage: AC100V-240V,50/60Hz.
Rated power: 800W.
Light source: Use 1 high-brightness high-power 600W white LED module.
Light source life: 20,000 hours.
Spot uniformity: 90%.
Beam Angle: 3°-40°, zoom lens, linear magnification and reduction function.
Control channel: 35 international standard DMX512 channels
Operation mode: Voice control, self-walking, master-slave, DMX512, RDM.
CMY Color mix: Cyan, magenta, yellow, smooth smooth endless color mix.
CTO color temperature linear adjustment, 3000K-6500K.
Color tray 1:4 colors + white light, half color effect.
Color Plate 2:4 colors + white light, half color effect.
The color film can be positioned arbitrarily, with a bi-directional rotating rainbow effect.
2 pattern plates:
Fixed pattern plate: 11 fixed pattern pieces + fire pattern effect + white light, with pattern shaking function.
Rotating pattern disk: 6 pluggable rotating pattern pieces + water pattern effect + white light, with pattern shaking and pattern arbitrary positioning functions.
Cutting disc: A group of 4 cutting blades composed of controlled light spot cutting Angle system, the entire cutting Angle system can do 150° rotation, through the precise control of the cutting light sheet, can create any shape of light spot.
Prism: 2 prisms, 1 3 prism and 1 8 prism, the prism can be rotated bidirectional, can be superimposed, and the speed can be adjusted.
Focus: DMX linear HD focus, sharpness adjustment from 2 meters to infinity.
Atomization: Built-in atomizing mirror can generate softening effect adjustment.
Stroboscopic: 1-25 times/SEC super high-speed stroboscopic effect, you can choose random stroboscopic and pulse stroboscopic.
Dimming: 0-100% linear dimming.
Optical coil: 5%~100% smooth adjustment.
Horizontal/vertical: horizontal 540°, vertical 270°, 16Bit precision scanning, automatic return correction function.
Display: LCD display.
Software: Built-in programs are available.
From the console can be completed to change the DMX address code, machine reset, voice control mode conversion and other functions.
Other functions: RDM function.
Intelligent energy saving, in the case of no light (Dimmer full off), the LED light source will be automatically extinguished.
Size: L385×W280×H700mm
Net weight: 25.5kg
